Broadcom BCM957504-M1100G16

Nettverksadapter - OCP - 100 Gigabit Ethernet x 1
Ikke på lager
Produsent Brocade
Artnr BCM957504-M1100G16
  • Kontakt oss for pris Eks mva
Bookmark and Share
  • Informasjon
    • Supports 50G PAM-4 and 25G NRZ signaling
    • Fully compliant with the SFF-8402 standard
    • PCI Express v4.0 x16 compliant
    • SR-IOV with up to 1k virtual functions (VFs)
    • Function-Level Reset (FLR) support
    • TruFlow flow processing engine
    • Virtual Network Termination - VXLAN, NVGRE, Geneve, GRE encap/decap
    • Tunnel-aware stateless offloads
    • DCB support - PFC, ETS, QCN, DCBx
    • RDMA over Converged Ethernet (RoCE)
    • Network Controller Sideband Interface (NC-SI)
    • SMBus 2.0
    • MCTP over SMBus
    • Jumbo frames up to 9 KB
    • Advanced congestion avoidance
    • Multiqueue, NetQueue, and VMQ
    • IPv4 and IPv6 offloads
    • TCP, UDP, and IP checksum offloads
    • Large send offload (LSO)
    • Large receive offload (LRO)
    • TCP segmentation offload (TSO)
    • Receive-side scaling (RSS)
    • Transmit-side scaling (TSS)
    • VLAN insertion/removal
    • Interrupt coalescing
    • Network boot - PXE, UEFI
    • ISCSI boot
    • Wake-on-LAN (WOL)
    • MSI and MSI-X

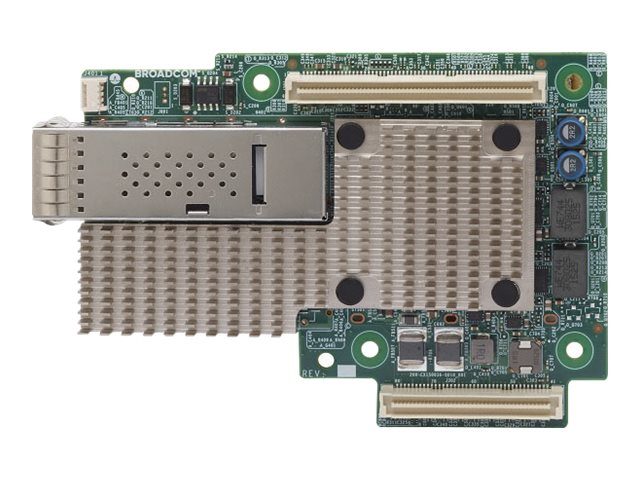

    The Broadcom BCM957504-M1100G16 is a single-port 100 Gb/s PCI Express v4.0 x16 network adapter card designed to the Open Compute Project (OCP) mezzanine card specification with a QSFP56 network connector. The adapter is designed to the OCP Mezzanine v2.0 specification as a Type 2 adapter with the board outline adhering to the original v0.5 dimensions. The adapter supports QSFP56/QSFP28/QSFP+ optical modules and copper direct-attach cables. The card uses the Broadcom BCM57504 100GbE MAC controller with an integrated 100GbE SFI transceiver.
